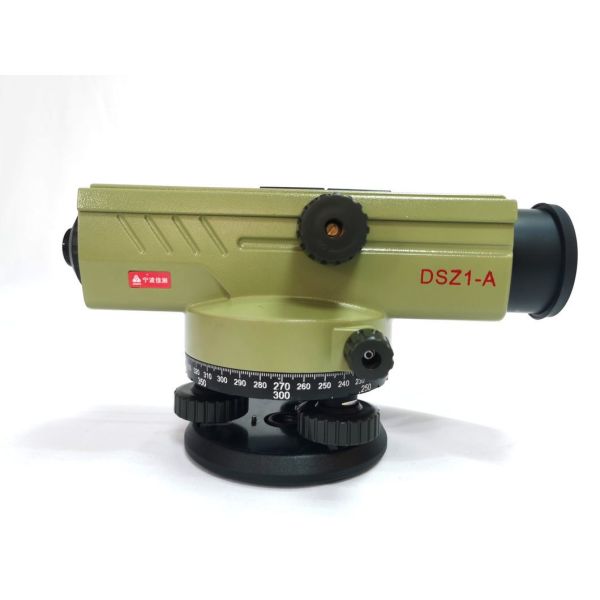

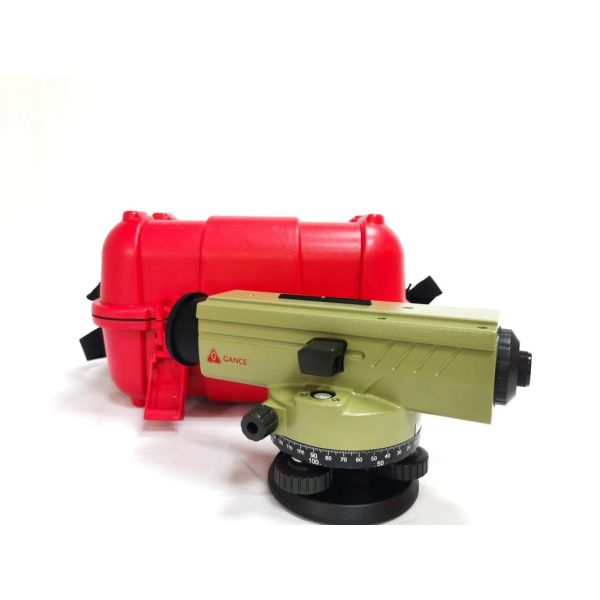

Opitical Short Sighted Automatic Leveling Instrument Construction Survey Equipment

Name: Opitical Short Sighted Automatic Leveling Instrument Construction Survey Equipment
Brand: CETU
Price: 80 USD

Quality Opitical Short Sighted Automatic Leveling Instrument Construction Survey Equipment for sale

Model Number : Dsz1a

Model NO. : DSZ1A

Horizontal Line : 1

Vertical Line : 1

After-Sales Service : Professional Guidance

Transport Package : Carton

Trademark : Gance

Origin : Ningbo, China

HS Code : 9015300000

Production Capacity : 5000

Place of Origin : China

Brand Name : CETU

Certification : CE

MOQ : 1

Packaging Details : Carton

Delivery Time : 10-30days

Payment Terms : T/T advance; Western union; MoneyGram,etc.

Supply Ability : 1000

Price : $80-6000

Contact Now

Dsz1a Opitical Auto Level for Construction Surveying Professional Guidance After-Sales Service 5000

Opitical Short Sighted Automatic Leveling Instrument Construction Survey Equipment

The short-sighted automatic leveling instrument DSZ1 is equipped with a magnetic damping automatic compensator, so the slight inclination of the instrument can be automatically corrected, and the stability of the instrument is not affected by external temperature changes and shocks. In addition, the instrument also has simple horizontal angle measurement and horizontal distance measurement functions, which are suitable for civil, construction and various engineering fields.

Telescope
Lens barrel length	240mm
Image	Erect
Objective lens effective aperture	46mm
Magnification	38x
Field of angle	1°25′
Resolution	3″
Shortest sight distance	0.3m

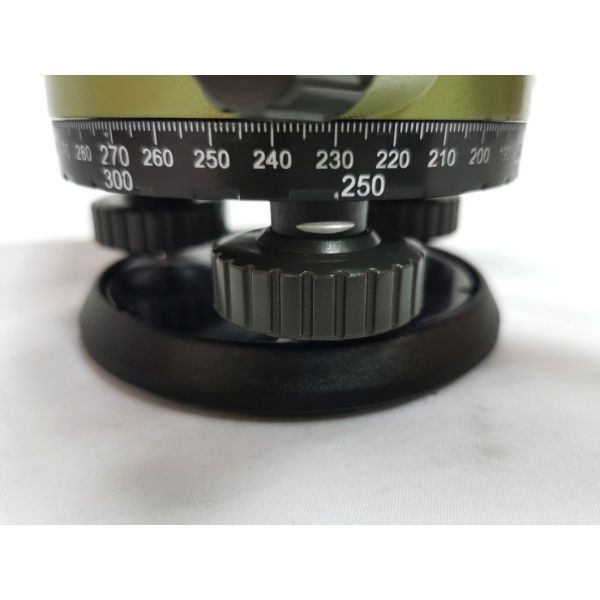

Horizontal plate degree
Diameter	103mm
Division value	1°/ 1 log
Automatic compensator
Compensation precision	0.3″/ 1′
Compensation range	±15′
Others
Circle Level	≤8′/ 2mm
Standard deviation of round-trip leveling per kilometer	0.7mm
Waterproof	Japan construction standard JIS IP54
Size	130x240x150 mm
Weight	About 2.0 kg (4.48lbs)
