Product Description
CHCNAV Sinov M6II Pocket RTK, small and light, only 0.73kg including battery, compared with the previous generation product, the weight of the whole machine is reduced by 50%, more convenient to carry, and less tiring to work; M6II Pocket RTK Handbook, free 3 years of surveying and mapping traffic, use in network mode More convenient; large-capacity lithium battery, super battery life, make the measurement no longer wait.

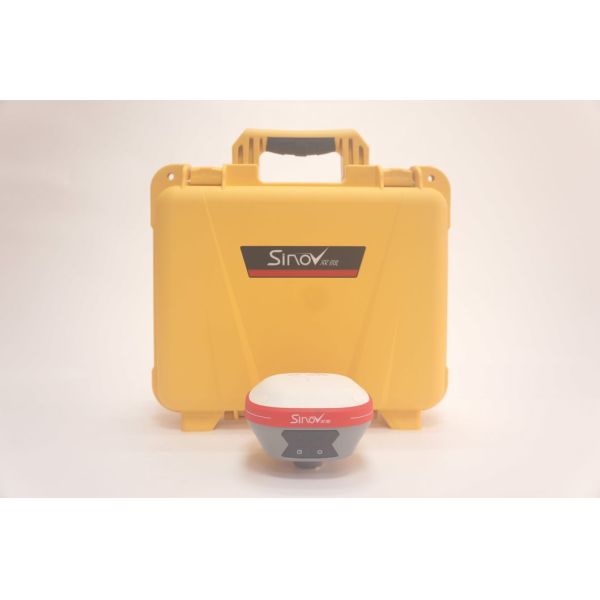

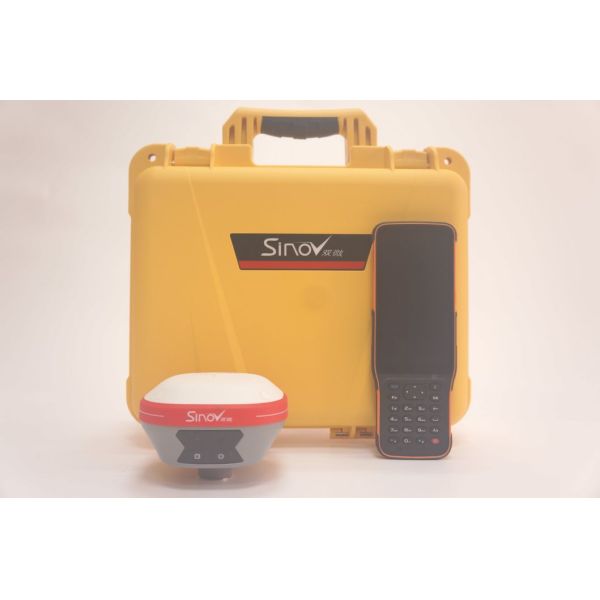

Detailed Photos
Product Parameters
| Receiver Characteristic |
Satellite System |
GPS+BDS+Glonass+Galileo+QZSS,
support Beidou 3rd generations,
support five-star twenty-one frequency |
| Channels |
624 |
| Operatin system |
Linux system |
| Initialization time |
<5s |
| Initialize reliability |
>99.99% |
| Receiver appearance |
Buttons |
1 dynamic/static switch key, 1 power key |
| Indicator light |
1 differential signal light, 1 satellite light,
1 static data acquisition light, 1 power light |
| Nominal Precision |
RTK precision |
Horizontal accuracy:±(8 + 1.0×10-6×D) mm |
| Vertical accuracy:±(15 + 1.0×10-6×D) mm |
| Static precision |
Horizontal accuracy: ±(2.5+ 0.5×10-6×D) mm |
| Vertical accuracy: ±( 5 + 0.5×10-6×D) mm |
| Code differential precision |
Horizontal accuracy: ±(0.25+ 1×10-6×D) mm |
| Vertical accuracy: ±( 0.5 + 1×10-6×D) mm |
| Electrification parameters |
Battery |
Built-in 6800mAh lithium battery |
| External power supply |
Support external power supply via USB port |
| Physical characteristics |
Size |
119 mm*119 mm * 85mm |
| Weight |
0.73Kg |
| Material |
Magnesium alloy AZ91D |
| Working temperature |
-45ºC~+75ºC |
| Storage temperature |
-55ºC~+85ºC |
| Waterproof and dustproof |
IP68 |
| Anti-collision |
IK08 |
| Anti-drop |
Resist 2 meters free fall |
| Data output |
Output format |
NMEA 0183, binary code |
| Output method |
BT/Wi-Fi/Radio |
| Static storage |
Storage format |
Can directly record HCN, HRC, RINEX |
| storage Space |
Standard 8GB built-in storage |
| Download method |
Universal USB data download; HTTP downloadv |
| Data communication |
I / O interface |
1 external UHF antenna port |
1 USB-TypeC interface,
support charging, power supply, data download |
| Network module |
Supports 4G full Netcom |
| Radio |
Built-in high frequency 450-470MHz single receiver radio |
| Bluetooth |
BT4.0, backward compatible with BT2.x,
compatible with Windows, Android, IOS systems |
| Protocol |
Transparent transmission, TT450 |
| Wi-Fi |
802.11 b/g/n |
| NFC |
Support NFC flash connection |
| Receiver function |
One-click match |
Support hand-controller software to match base station data with one key |
| Remote upgrade |
Software and hardware remote upgrade |
| Hand-controller parameters |
Type |
HCE600 |
| Network |
4G full Netcom, built-in eSIM for three years of surveying and mapping traffic |
| Operating system |
Android 10 |
| CPU |
Octa-core 2.0Ghz processor |
| LCD screen |
5.5'' HD display |
| Working time |
About 14 hours |
